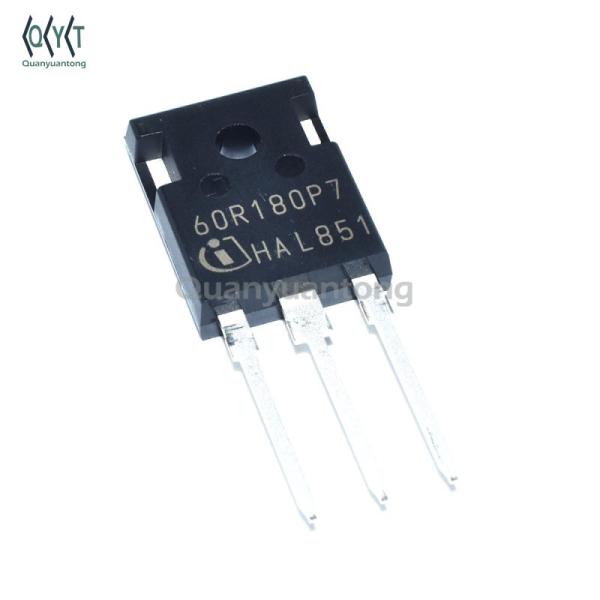

IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247

    Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers

    Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers
    • Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers
    • Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers
    • Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers
    • Buy cheap IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247 from wholesalers

    IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247

    Ask Lasest Price
    Model Number : IPW60R180P7
    Brand Name : Original
    Price : $1.43
    Delivery Time : 1-7 days
    Payment Terms : T/T, Western Union, Paypal,Alibaba trade order
    Supply Ability : 859000PCS/Day
    • Product Details
    • Company Profile

    IPW60R180P7 60R180P7 N Mosfet Transistor 650V 18A 72W TO247

    Product Description

    Product Detail


    PackagingTube
    Part StatusActive
    FET TypeN-Channel
    TechnologyMOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss)650V
    Current - Continuous Drain (Id) @ 25°C18A (Tc)
    Drive Voltage (Max Rds On, Min Rds On)10V
    Rds On (Max) @ Id, Vgs180mOhm @ 5.6A, 10V
    Vgs(th) (Max) @ Id4V @ 280µA
    Gate Charge (Qg) (Max) @ Vgs25nC @ 10V
    Vgs (Max)±20V
    Input Capacitance (Ciss) (Max) @ Vds1081pF @ 400V
    FET Feature-
    Power Dissipation (Max)72W (Tc)
    Operating Temperature-55°C ~ 150°C (TJ)
    Mounting TypeThrough Hole
    Supplier Device PackagePG-TO247-3
    Package / CaseTO-247-3

    Product Detail


    1. Stock,Order goods or Manufacturing welcome.

    2. Sample order.

    3. We will reply you for your inquiry in 24 hours.

    4. After sending, we will track the products for you once every two days, until you get the products.

    5. When you got the goods, test them, and give me a feedback.If you have any problem

    contact us, we will solve for you.
